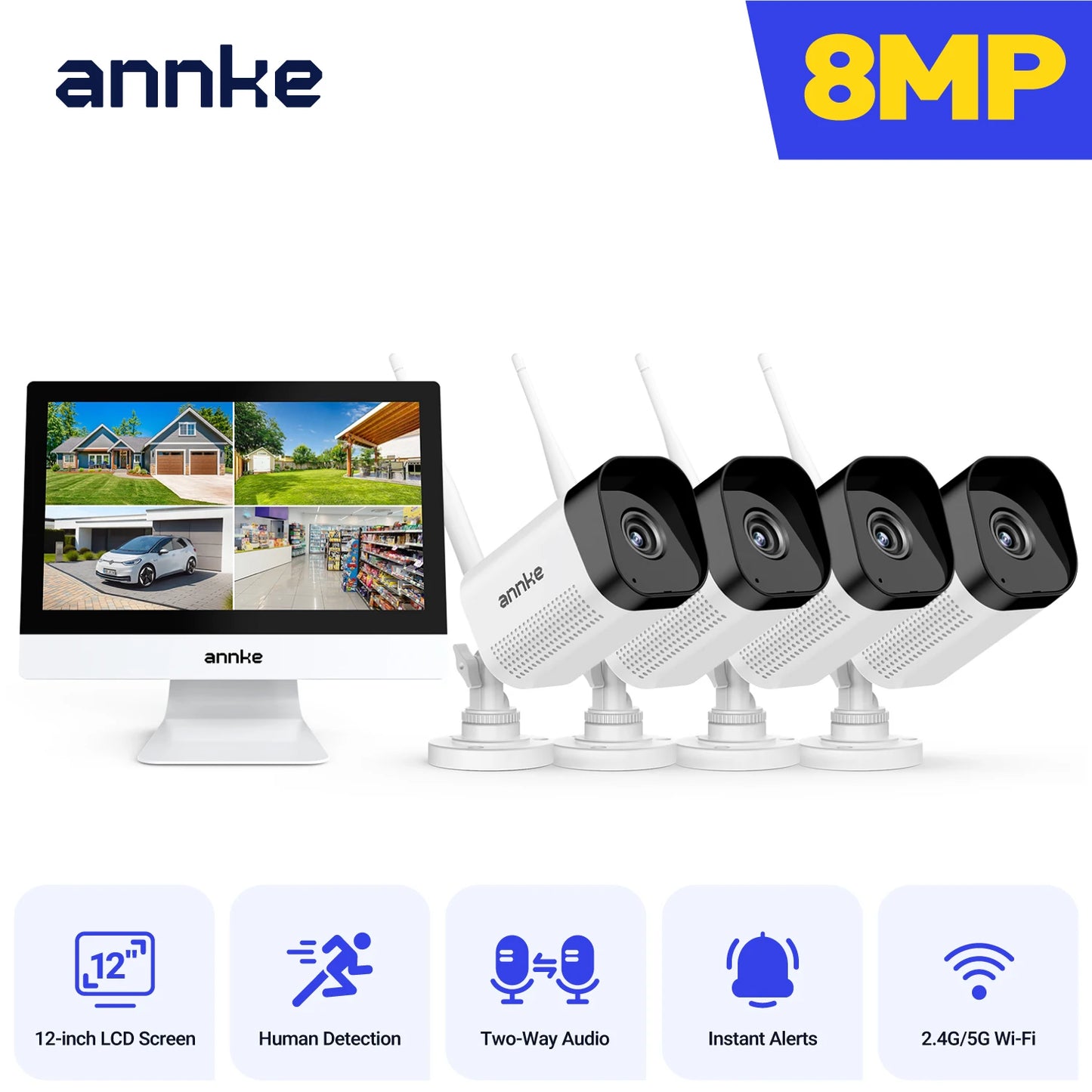

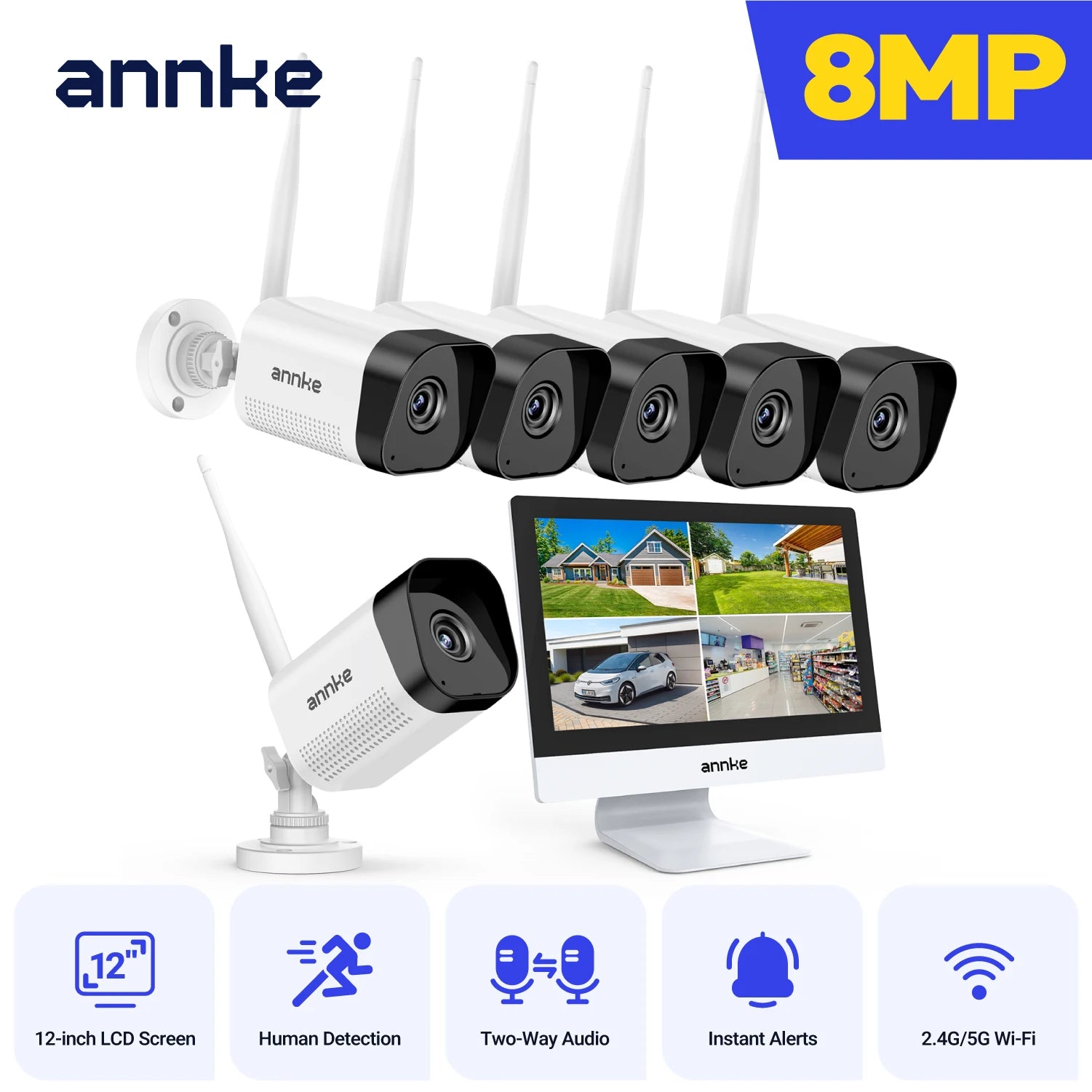

Model Number |
N48WEE |
|
|
NVR |
Video & Audio |
LCD screen |
12 inch |
Video Compression |
H.264+ |
IP Video Input |
10 CH Wireless |
Video Output |
HDMI Up to 4K |
Audio Output |
Support |
Max Recording Resolution |
Up to 8M |
Max Playback Resolution |
Up to 8M |
Max Playback Channel |
4CH |
Max Playback Capacity |
4CH 3MP/2CH 5MP/1CH 8MP |

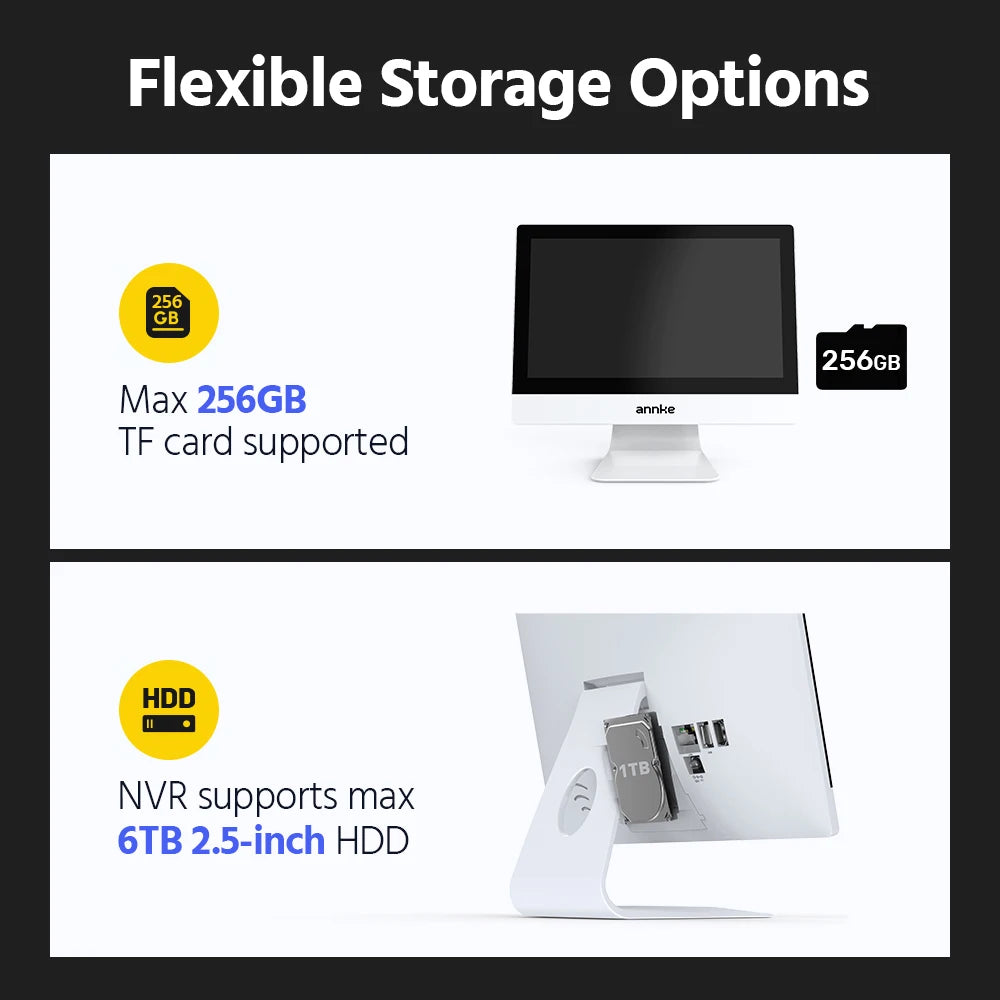

Hard Drive |
HDD |
1 SATA interface，Up to 6TB capacity(2.5 inches) |
SD |
1 Micro SD interface，Up to 256GB |
External Interface
|
Network interface |
RJ45x1(10/100M) |

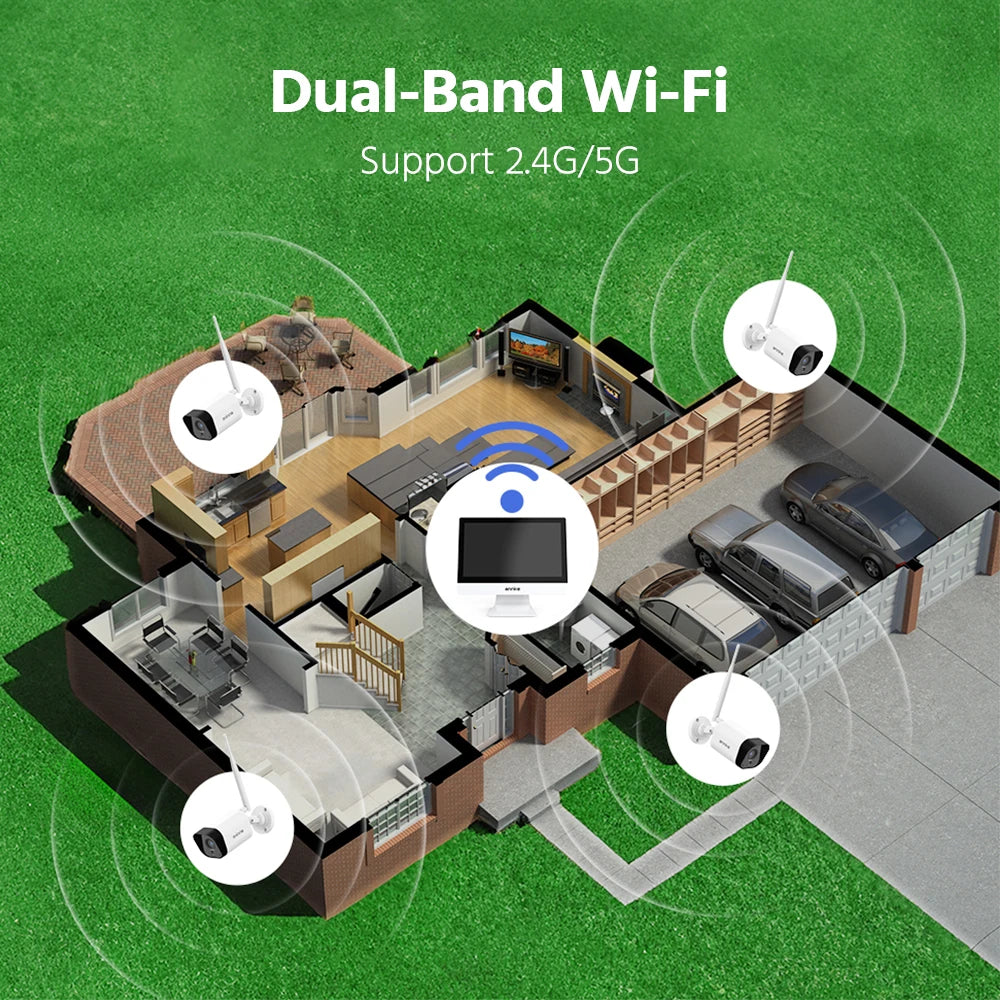

Wireless antenna |
Built-in（2.4G&5.8G dual-band，IEEE802.11b/g/n/ac) |
USB |
USB 2.0x1 |
General |
Housing |
Plastic |

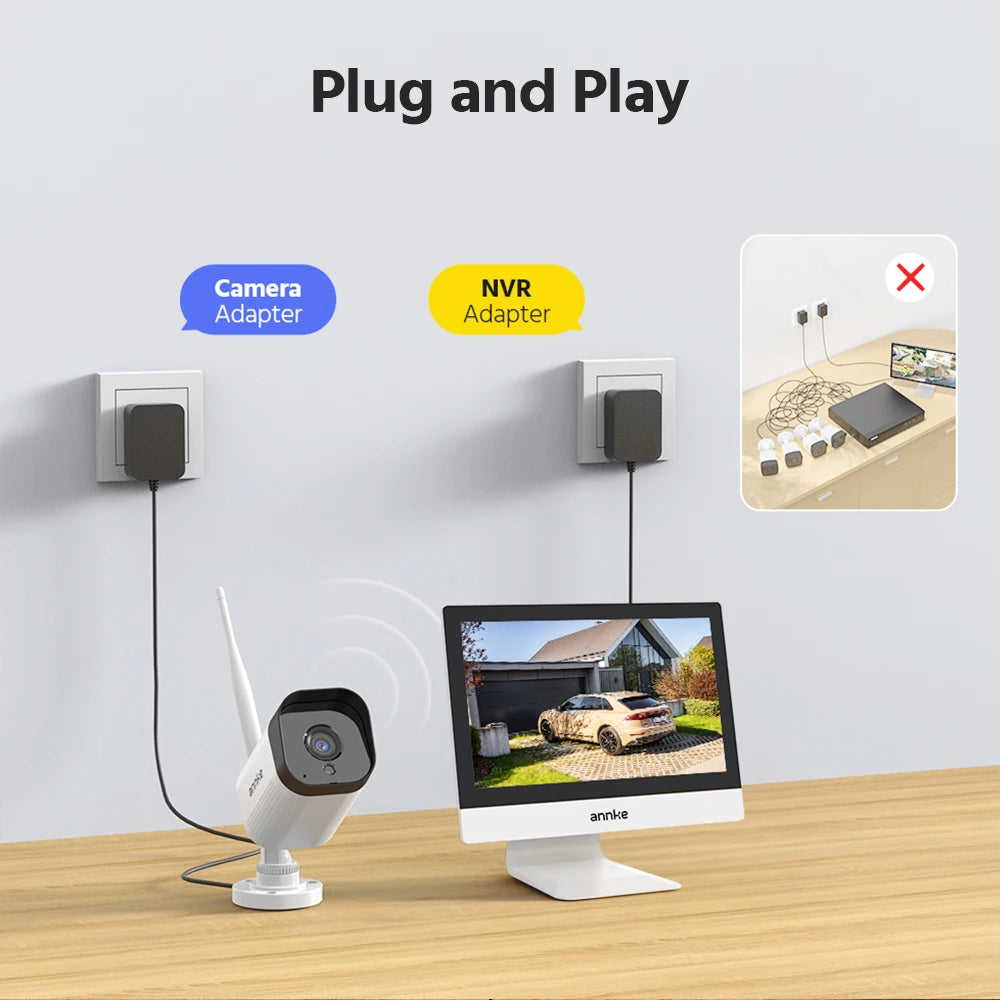

Operating Power |
DC12V |
Power Consumption |
20W (With HDD) |
Working Temperature |
14 °F ~ 131 °F /-10 °C ~ 55 °C |
Dimensions(W x H x D) |
10.2” x 9.3” x 6.9” / 260x235x175mm(Including the bracket) |
Weight |
2.93lbs / 1330g (With HDD) |

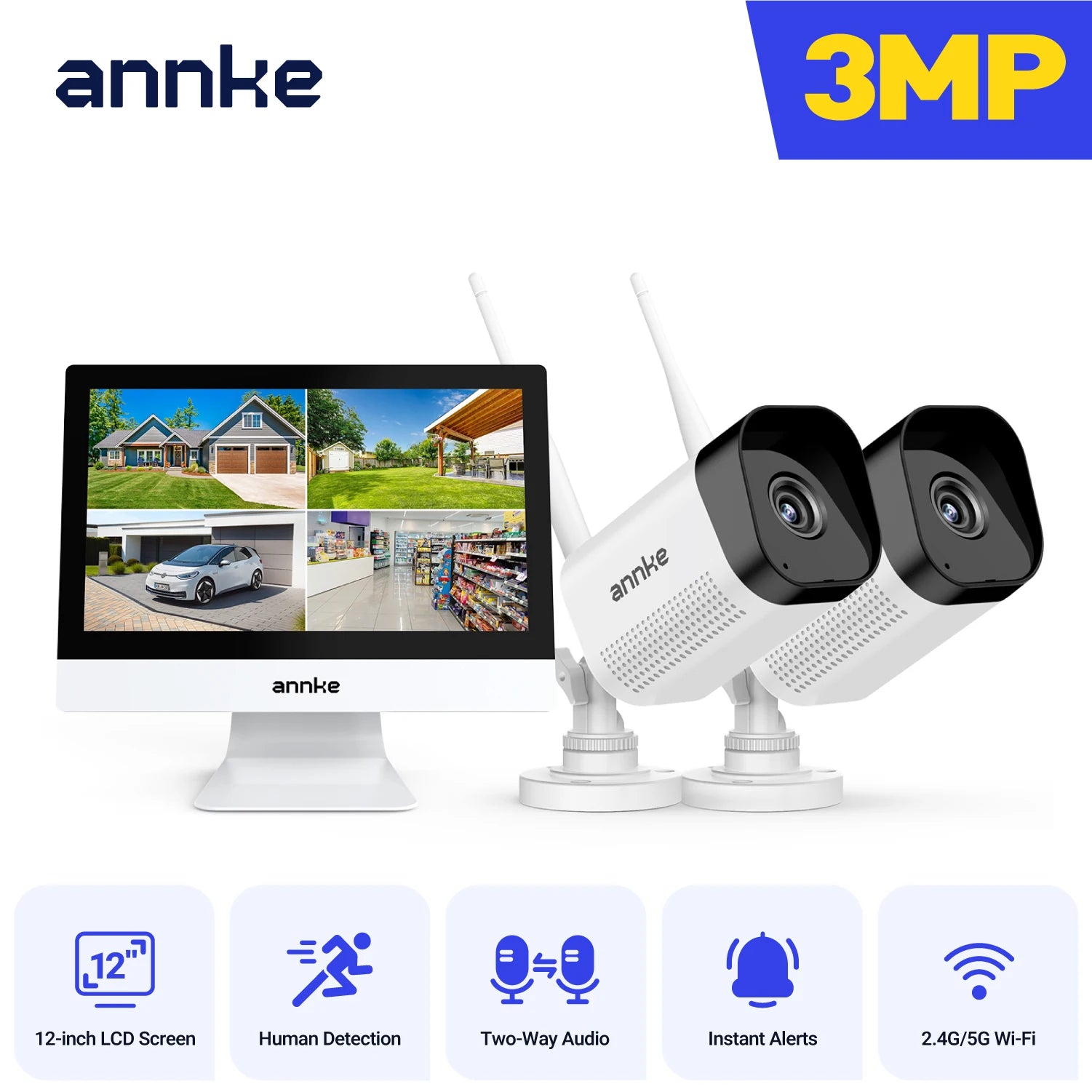

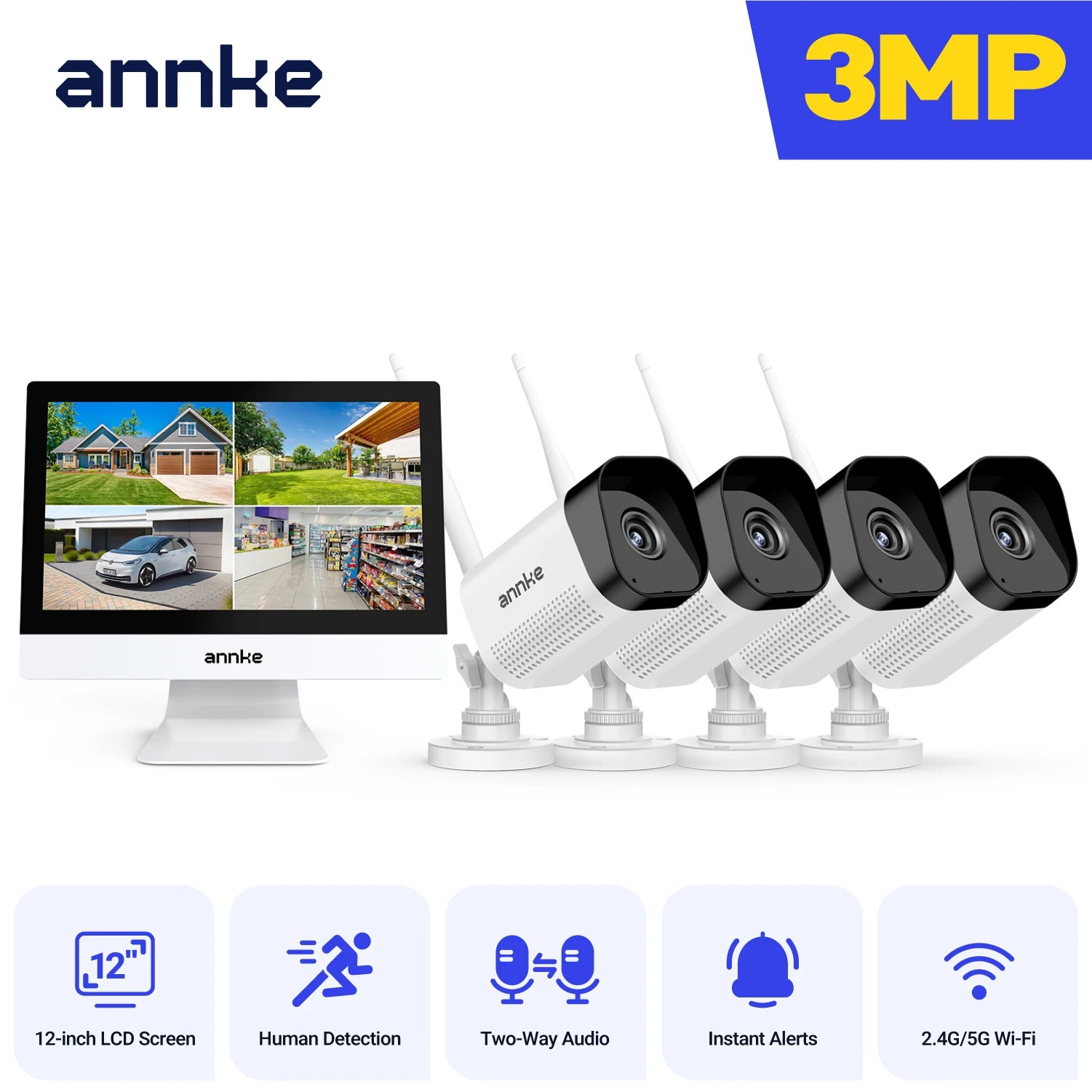

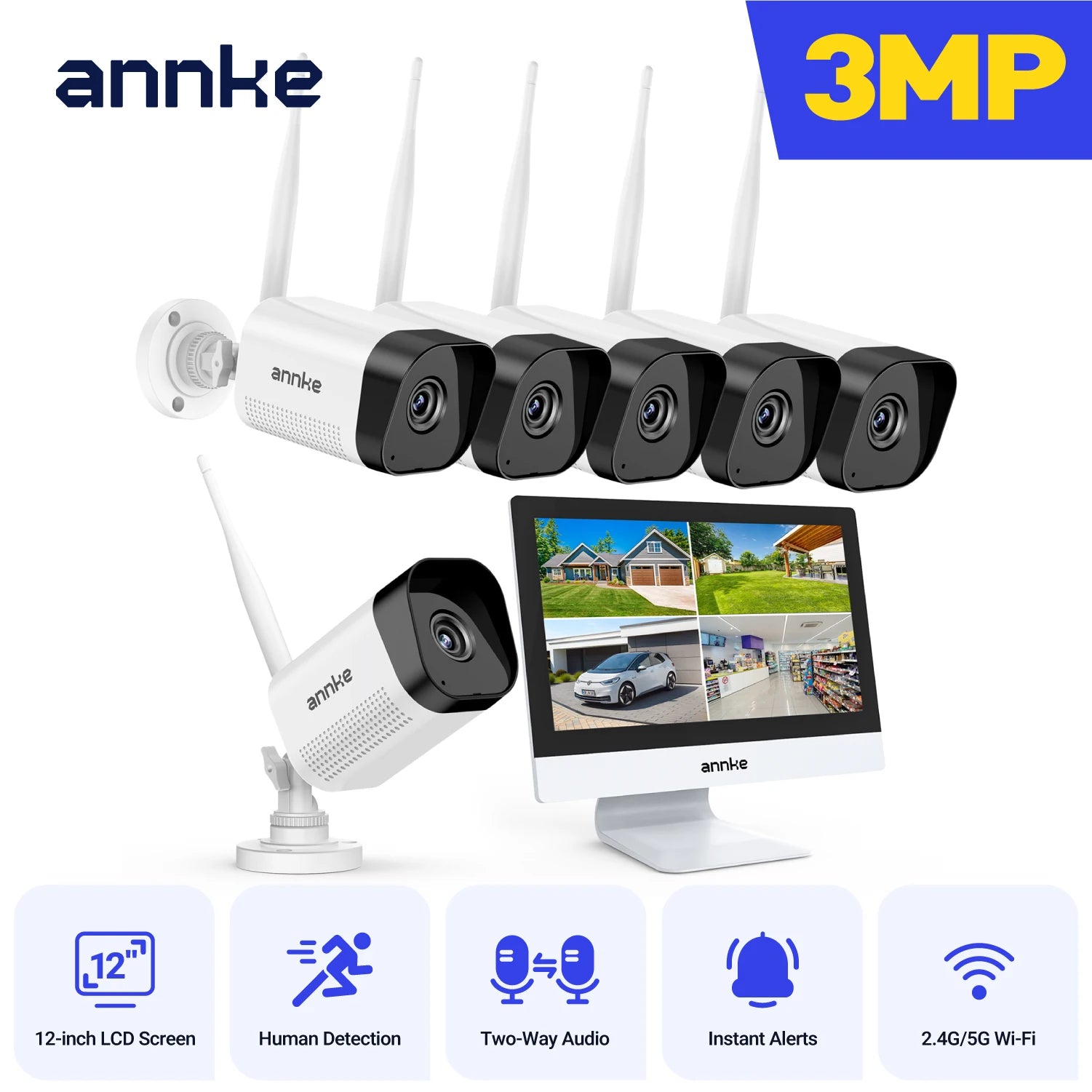

IP Camera Model Number I71GK |
Camera |
Video Resolution |
3MP (2304 X 1296) |
Image sensor |
1/2.8" Progressive Scan CMOS |
Video compression |
H.264+ |
Audio Compression |
G.711A |
Lens |
3.6mm |
Angle of View |
70° |
Number of Infra-Red LEDs |
18 |
Night Vision Distance |
Up to 100ft/30m |
IR Cut Filter |
YES |
Ethernet |
RJ45x1(10M/100M) |
Wireless antenna |
1 Ports(2.4G&5.8G dual-band，IEEE802.11b/g/n/ac) |
General |
Housing |
Metal for mainpart |
Operating Power |
DC12V |
Operating Temperature |
-4 °F – 140 °F /-20 °C – 60 °C |
Indoor/Outdoor |
Indoor/Outdoor |
Weatherproof Rating |
IP66 |
Dimension (L x W x H) |
|
Weight |
|
