ANNKE 4K 8MP POE NVR Surveillance System With 16 Cameras
ANNKE 4K 8MP POE NVR Surveillance System With 16 Cameras
Couldn't load pickup availability

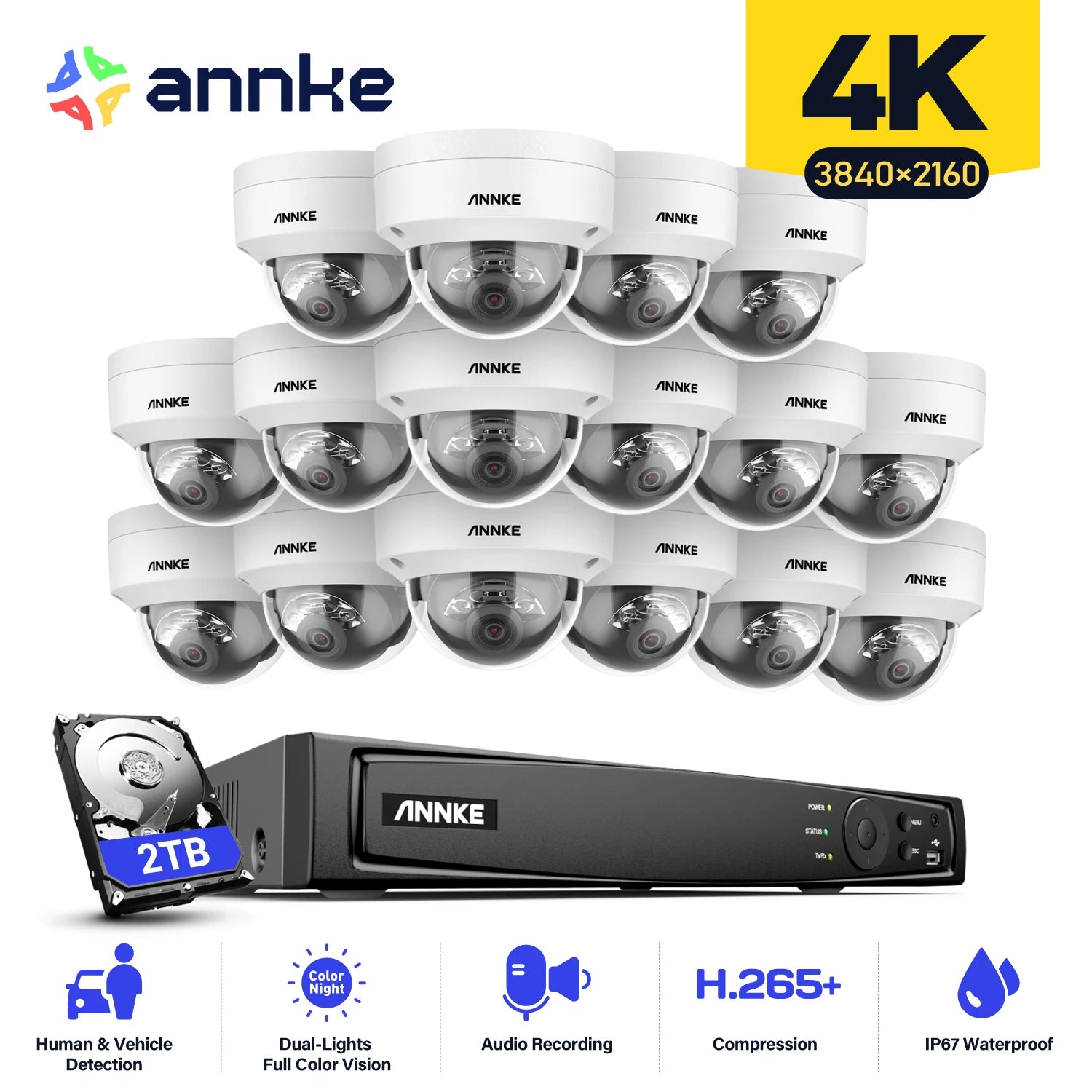

Elevate your security with the ANNKE 4K 8MP POE NVR Surveillance System featuring 16 cameras for comprehensive coverage and sharp detail.
- 16-channel NVR with PoE powers every camera, supports up to 8 MP live view/recording, and includes 4K HDMI output plus dual-SATA storage for reliable backups.
- Sixteen 4K smart dual-light cameras with a 4 mm F1.6 lens, 102° FoV, IP67 rating, up to 30 m night vision, 3D DNR, 120 dB WDR, and a built-in mic for real-time audio.
- Smart detection & compatibility with Motion Detection 2.0 (human & vehicle), ONVIF support, NAS options, and easy remote viewing via Annke Vision on iPhone, iPad, and Android.
- Rugged, flexible installation with PoE/DC12V, wide operating temps (-22°F to 140°F / -30°C to 60°C), IP67/IK10 durability, and cable options up to 30 m or 18 m for tailored layouts.
IP Camera | ||
Camera |
Image Sensor |
1/2.5" Progressive Scan CMOS |
Video Resolution |
50 Hz: 12.5 fps (3840 X 2160, 2560 X 1440, 1920 X 1080, 1280 X 720) |
|
Sub Stream |
50Hz: 25 fps (640 X 480, 640 X 360) |
|
Video Compression |
H.265+/H.265 |
|
Video Bitrate |
32 Kbps — 16 Mbps |
|
Audio Compression |
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC |
|
Audio Input/Output |
Built-in Microphone |
|
Lens |
2.8 mm |
|
Min. Illumination |
0.01 Lux@(F2.0, AGC On) |
|
Angle of View |
Horizontal FoV 102°, Vertical FoV 53°, Diagonal FoV 123° |
|
Number of Infrared LEDs |
2 pcs |
|
Night Vision Distance |
Up to 100 ft/30 m |
|
DNR |
3D DNR |
|
Wide Dynamic Range |
120 dB WDR |
|
Network Storage |
Local Storage & NAS (NFS, SMB/CIFS) |
|
ONVIF |
Support |
|
Day/Night Switch |
Day, Night, Auto, Schedule |
|
Ethernet |
RJ45 X1 (10 M/100 M) |
|
General |
Housing |
Aluminum Alloy for Main Body |
Color |
White |
|
Operating Power |
PoE (802.3af), 12 V DC ± 25% |
|
Storage |
Built-in MicroSD/SDHC/SDXC Slot, up to 256 GB |
|
Hardware Reset |
Yes |
|
Operating Temperature |
-22 °F – 140 °F /-30 °C – 60 °C |
|
Indoor/Outdoor |
Indoor/Outdoor |
|
Weatherproof Rating |
IP67 & IK10 |
|
Dimension (L X W X H) |
Ø120 X 92.2 mm (4.7" X 3.6") |
|
Weight |
0.9 lb./420 g |
|
